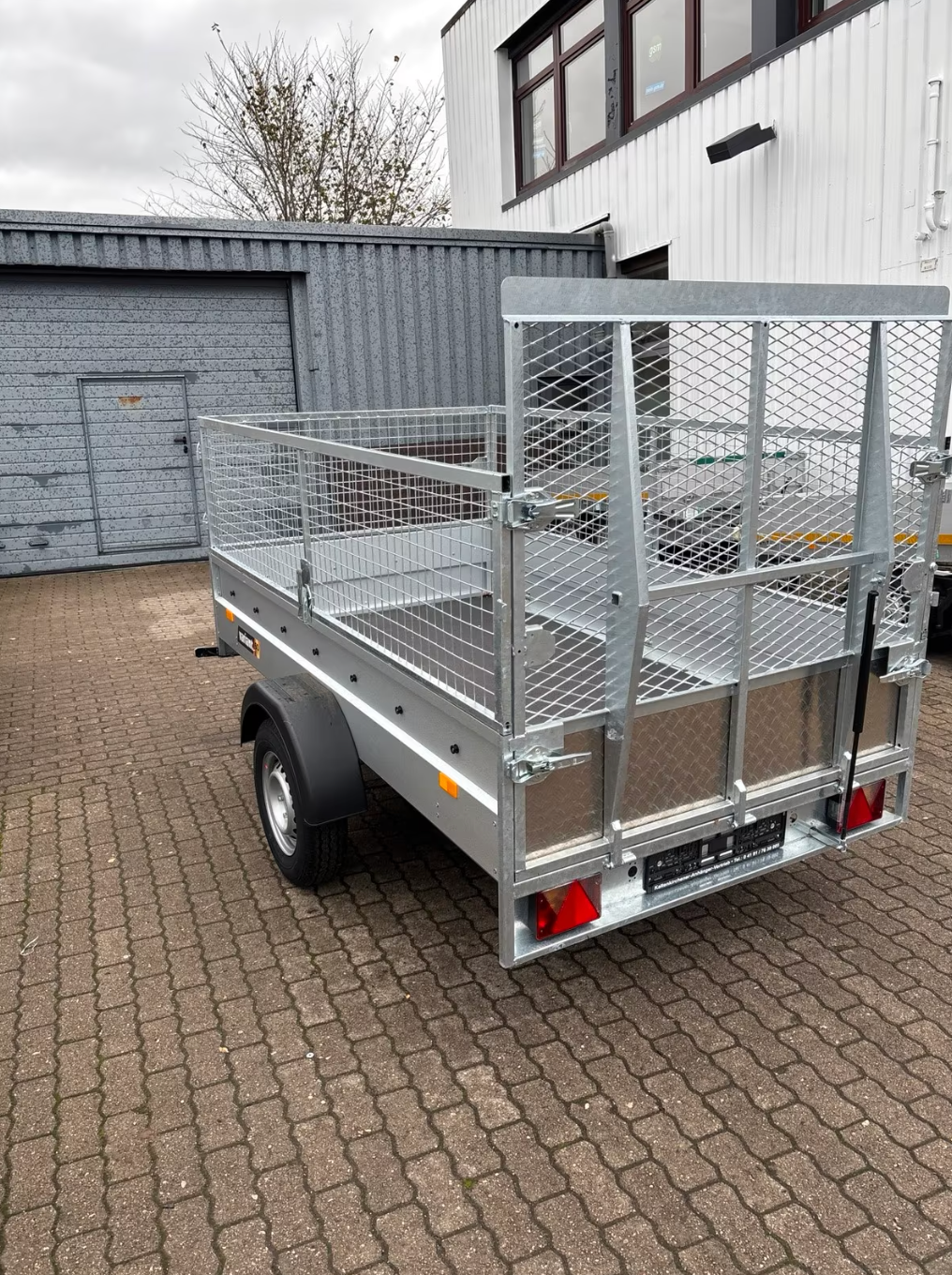

Variant 1304 F1 MR Single-Axle Machine Transporter (1,350 kg GVWR)

Variant 1304 F1 MR Steel Utility Box Trailer 257x145 cm - 1,350kg Cargo Trailer with Rear Loading Ramp.

The Variant 1304 F1 MR is a commercial-grade machine transporter in the combination trailer category, engineered for professional contractors, landscapers, and tradespeople who require safe, daily transport for smaller plant machinery, lawnmowers, and heavy equipment. Built with sturdy steel sides and a solid 15 mm thick veneer plywood floor, this low-profile box trailer stands up to punishing work environments. The side-mounted wheel configuration lowers the chassis deck closer to the ground, offering an incredibly low 40 cm loading height that simplifies loading cycles.

For rapid equipment handling, the rear of the trailer is fitted with a full-width 139 cm tall driving ramp operating at a 23-degree approach angle, allowing small compact machines or wheeled tools to drive directly onto the bed. The interior loading platform features 6 integrated heavy-duty lashing rings to properly anchor cargo tie-down straps during transit. The single-axle setup comes fully equipped with an automatic overrun braking system for highway safety alongside a heavy-duty jockey wheel for effortless manual coupling and placement.

Technical Specifications & Dimensions

• Brand Name: Variant

• Model Number: 1304 F1 MR

• Condition: New

• Axle Configuration: Single Axle (1 Axle)

• Braking System: Mechanical Overrun Brakes

• Wheel Configuration: Side-Mounted Chassis Setup with 13" Highway Tires

• Chassis Equipment: Standard Heavy-Duty Jockey Wheel Included

• Side Wall Material: Rigid Steel Panels

• Floor Material: 15 mm Heavy-Duty Veneer Plywood

• Gross Vehicle Weight Rating (GVWR): 1,350 kg (2,976.24 lbs)

• Unladen Tare Weight: 309 kg (681.23 lbs)

• Maximum Net Payload Capacity: 1,041 kg (2,294.99 lbs)

• Usable Internal Cargo Dimensions (L x W x H): 257 cm x 145 cm x 39 cm (101.18 in x 57.09 in x 15.35 in)

• Rear Loading Ramp Height: 139 cm (54.72 in)

• Loading Bed Height: 40 cm (15.75 in)

• Ramp Approach Angle: 23°

• Overall External Dimensions (L x W x H): 403 cm x 191 cm x 196 cm (158.66 in x 75.20 in x 77.17 in)

• Cargo Security: 6 Internal Bed Lashing Rings
